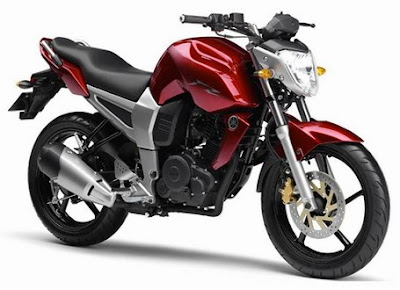

Motorcycles New 2010 Yamaha FZ16/Bison Street Fighter Edition


PT. YMKI soon will issue a new bike is Yamaha FZ16/Bison, Yamaha FZ16/Bison was outstanding issues according to the launching in February 2010. Yamaha FZ16/Bison has a 150cc engine capacity equal to the previous product is Yamaha Vixion. But from another aspect Yamaha Bison have differences with the Yamaha Vixion input system. Yamaha FZ16/Bison use carburetor Yamaha Vixion whereas injection system. There are other differences in the design of the bike is Yamaha Bison Street Fighter redundancy while Yamaha Vixion Sport style.

Specification New 2010 Yamaha FZ16/Bison Street Fighter Edition

Engine
Engine type Air-cooled, 4-stroke, SOHC, 2-valve
Displacement 153.0cm3
Bore & Stroke 58.0 × 57.9mm
Compression ratio 9.5:1
Maximum output 14PS / 7500 rpm
Maximum torque 14 N.m / 6000 rpm
Starting method Electric starter
Lubrication type Wet sump
Carburetor type BS26
Clutch type Constant mesh wet multiplate
Ignition type CDI
Primary/secondary reduction ratio 3.409 / 2.857
Transmission type Return type 5-speed

Chassis
Frame type Diamond
Suspension (front/rear) Telescopic / Monocross
Wheelbase 1,335mm
Brake type(front/rear) Hydraulic single disc / drum
Tire size (front/rear) 100/80-17 / 140/60-R17

Dimensions
Overall Length × Width × Height 1,975mm × 770mm × 1,045mm
Seat height 790mm
Wheelbase 1,335mm
Minimum ground clearance 160mm
Dry weight/Curb weight 126 kg / 137 kg
Fuel tank volume 12 liters
Engine oil volume 1.2 liters
